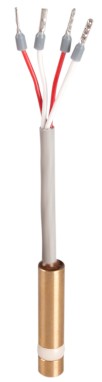

Pt 1000 temperature sensor

figure T5100 140 00

  • temperature sensor for connection to BMS
  • temperature range 0 - 100 °C
  • four-wire technology
Downloads
/media/crossbase/fot_pro_per_t510014000003__sall__ainfs__v1.jpg_lj_366x382.jpg
/media/crossbase/zei_pro_sch_t51001400000300__sall__ainfs__v1.jpg_lj_366x382.jpg
Site navigation

Product Features

  • temperature sensor for connection to BMS
  • temperature range 0 - 100 °C
  • four-wire technology
  • tolerance class A
  • for insertion in the isolating unit of the MULTI-THERM circulation balancing valve, the measuring nozzles of the MULTI-FIX-PLUS circulation balancing valve and the measuring nozzles of the MULTI T-PIECE
  • for all dimensions
  • can be used for all valves with frontal drain opening in combination with drain valve with immersion sleeve (part no. J71091500000600)

Technical data

  • pressure rating PN 16
  • min. operating temperature 0 °C
  • max. operating temperature 100 °C
  • protection class IP67
/media/crossbase/zei_pro_sch_t51001400000300__sall__ainfs__v1.jpg_lj_404xy.jpg
/media/crossbase/zei_pro_sch_t51001400000300__sall__ainfs__v1.jpg_lj_680xy.jpg

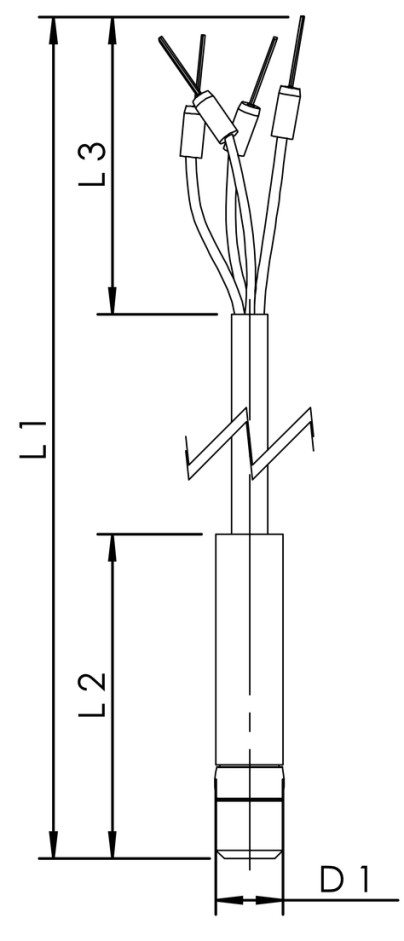

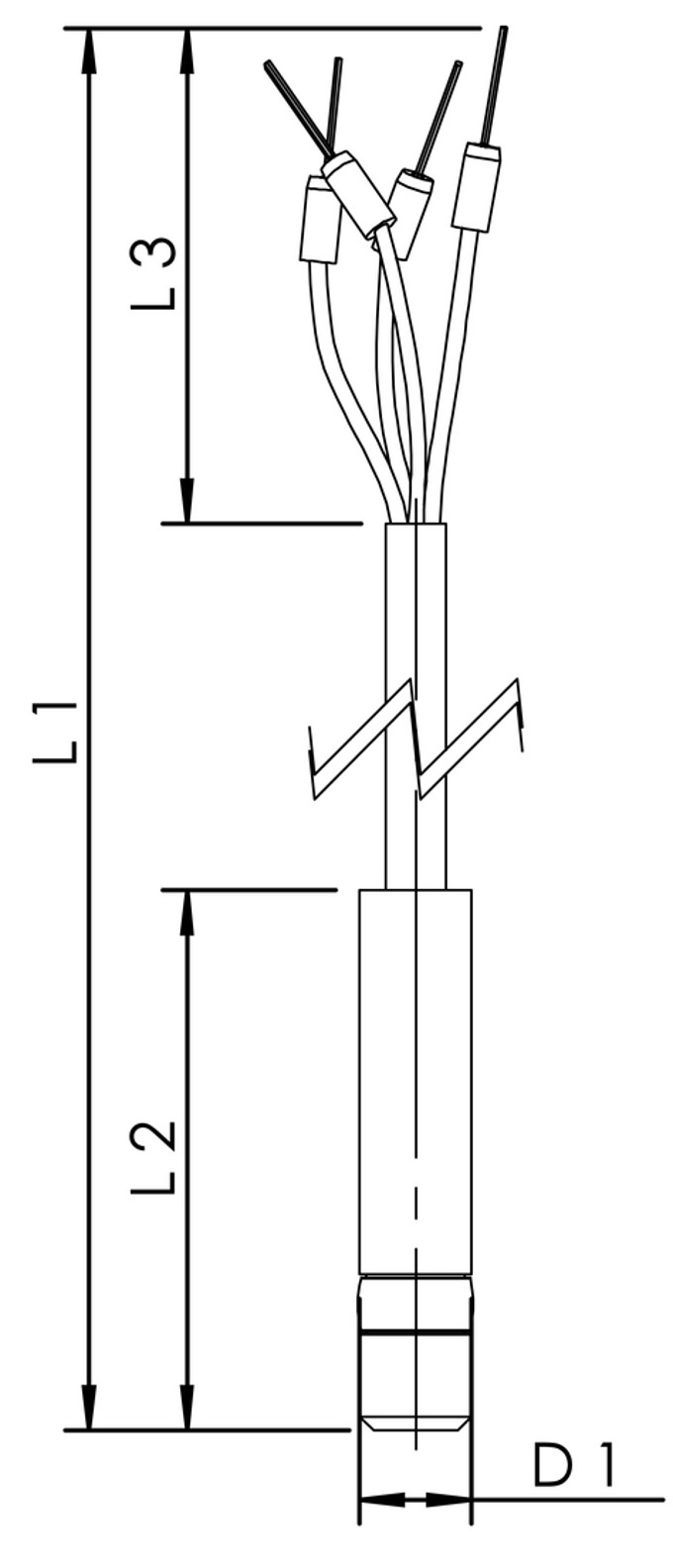

Part no. D1
(mm)		 L1
(mm)		 L2
(mm)		 L3
(mm)		 kg
T510014000003KP 9.6 2000 45 40 0.10

Downloads

Data sheet
File type
Product data sheet
pdf
Instructions
File type
Installation and operating instructions Temperature sensor Pt1000
pdf (0.91 MB)
Brochures
File type
Building technology valves and systems
pdf (20.57 MB)
